iPDU Series

Programmable AC/DC Power Distribution Units

Software Controlled
SCPI over IP
Touch Screen TFT Display for Manual Operation
Long Term Data Acquisition
Current Limiting with Cutoff and Warn Options
Voltage Protection with user defined Cutoff and Warn Levels
19" Rack Mount

iPDU is a software-controlled, intelligent Power Distribution Unit, designed for use in industrial automation and automatic test equipments.

Units have single and three phase outputs depending on the model.

Output channels can be turned on/off sequentially at specified times. Desired channels in order can be included/excluded in/from the on-off scenario. Sequential on-off times are adjustable between 0.1 seconds and 999.9 seconds.

Units can also be managed with PDU Manager software over the 10/100 Mbits Ethernet interface. Sequential on-off scenarios created with PDU Manager software are independent of the RCU.

iPDU supports SCPI protocol. Users can integrate the units into their own environment using the SCPI protocol over the Ethernet interface.

All the settings and configurations can be made through Touch Screen TFT LCD on the Remote Control Unit (RCU). There is an Emergency Stop Button on the RCU, as well. Live status of all channels can be monitored.on the RCU main screen. Please see RCU Section for more details.

There is a 105 dBA buzzer inside the PDU. Besides visual warnings, current/voltage anomalies are notified to the user audibly.

There is a real time counter (ETI) on the PDU. ETI is independent of all other components and it shows the total time that the unit has remained active.

In the front panel of the PDU, there are manual on/off switches and for standalone operation and thermal circuit breakers.

Features

19” Rack Mount (height depends on the configuration)
Input voltage measurement
Precision output current measurement for each outlet group
SCPI over TCP/IP
PDU Manager support
Adjustable Under/Over Voltage Protection (Warning and Cut-off limits can be set independently)
Adjustable Current Limit Function (Independent for each output group. With Cut/Warn options
Sequential on-off (0.1 sec – 999.9secs)
Input/Output indicators
Elapsed Time Indicator
IEC 320 C13/C19 outputs
Terminal Block Outputs
Ambient temperature sensor

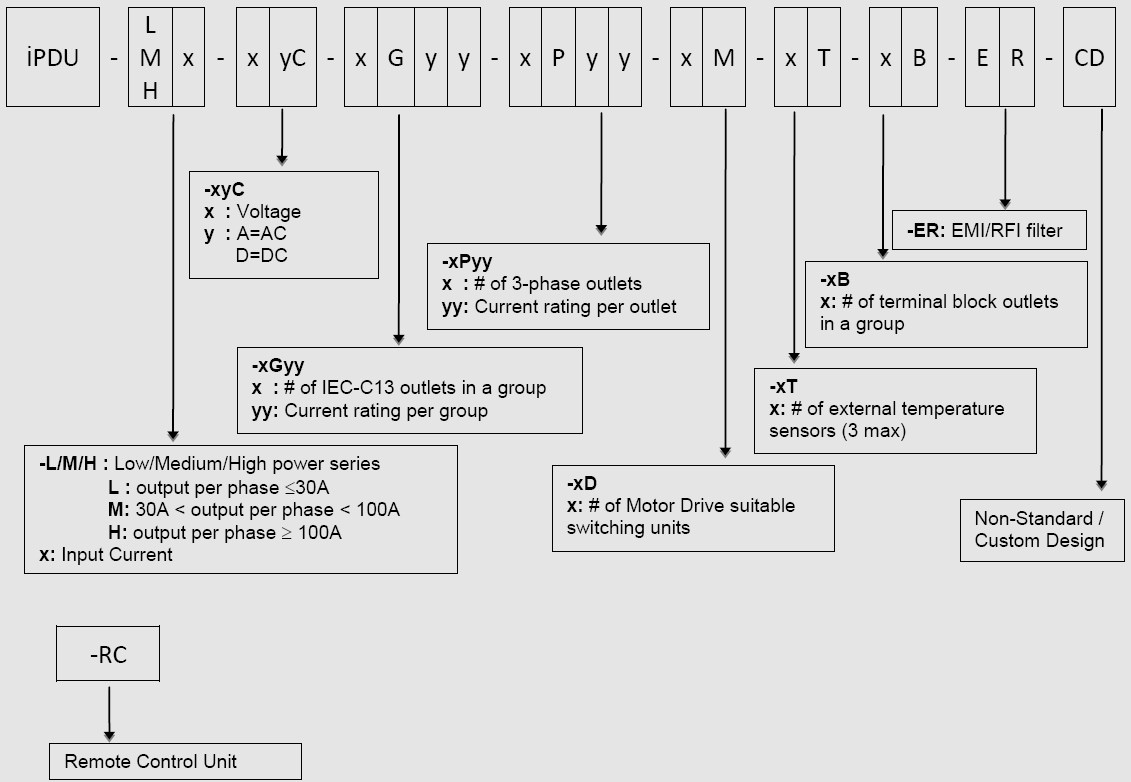

iPDU can be ordered in different input-output configurations according to user requirements.
Here are mostly ordered configurations:

iPDU Configuration	Voltage	Current	Total Power	Output Channels	Input Connectors	Output Connectors
iPDU-M40-1P40-3G20	380VAC	120A	26.4kW	4 Total 380VAC 3~ 40A/1 Channel 220VAC 1~ 20A/3 Channels	5 Pole Terminal Block	3~ Channel: 5 Pole Terminal Block 1~ Channels: 3x6 IEC 320 C13
iPDU-M40-3G40	380VAC	120A	26.4kW	3 Total 220VAC 1~ 40A/3 Channels	5 Pole Terminal Block	3x6 IEC 320 C13 + 3x3 Pole Terminal Block
iPDU-M60-3P30-3G30	380VAC	180A	39.6kW	6 Total 380VAC 3~ 30A/3 Channels 220VAC 1~ 30A/3 Channels	5 Pole Terminal Block	3~ Channels: 5 Pole Terminal Block 1~ Channels: 3x6 IEC 320 C13
iPDU-L20-16G16	220VAC	20A	3.5kW	16 Total 220VAC 1~ 16A/16 Channels	IEC 320 C20	16x1 IEC 320 C13
iPDU-H400-28DC-25	20-30VDC	400A	10kW	25 Total See iPDU-28DC	9+9 Pole Termianal Block	MIL-DTL-5015 Connectors
