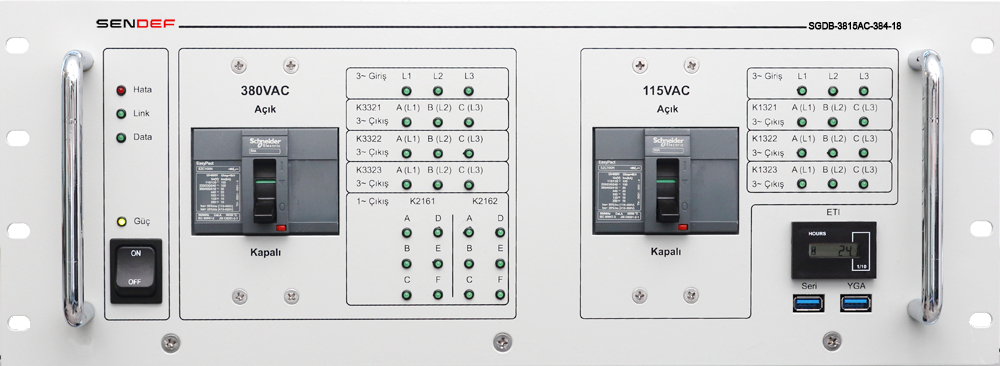

SGDB-3815-384-18

Input 1: 380VAC 50/60Hz 3-phase
Input 2: 115VAC 400Hz 3-phase

220/380VAC Output

115VAC Output

Call for other configuration options.

Specifications

Spec Unit Value
Input Voltage V 380VAC 50/60Hz
115VAC 400Hz
Switching Capacity A 768
Number of output chanels # 18
Total power kW 185
Measurement accuracy % 1  (at max value of channel)
Current limit sense and response time µS ~50

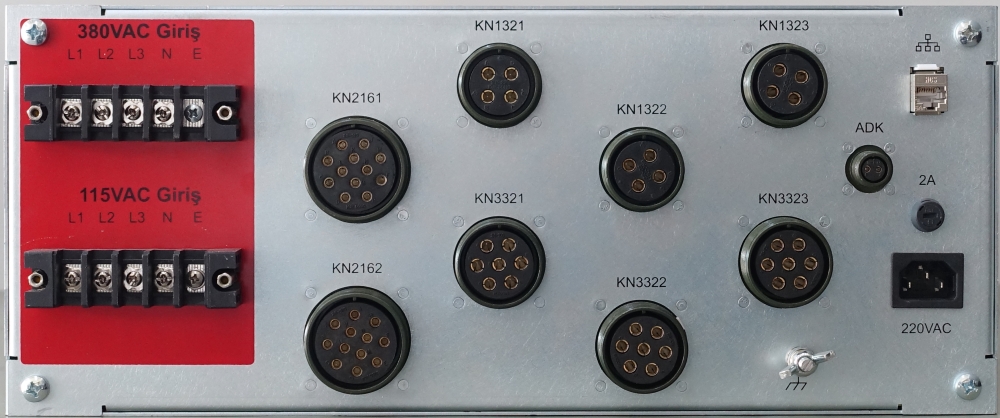

Output connectors - MIL-DTL-5015
Input connector - 5 +5 Pole Terminal Block
Aux power input V 85-265VAC
LAN Mbit 10/100
Serial communication - USB 2.0
Cooling - Convection
Dimensions mm 482(W) x 177(H) x 600(D)
