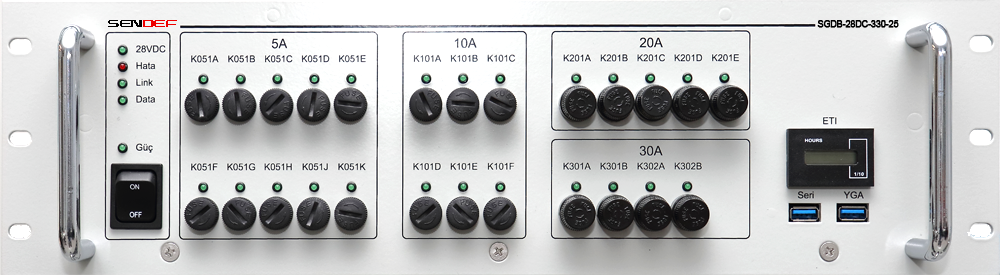

SGDB-28DC-330-25

The unit supports 15 LP (up to 10 amps) and 10 HP (up to 30 amps) output channels and can be ordered in different configurations according to user requirements. For example:

25x10A, a total of 250A
10x5A, 5x10A, 5x20A, 5x30A, a total of 350A
15x10A, 10x20A, a total of 350A
15x10A, 5x20A, 5x30A a total of 400A

The unit has also high/low voltage protection. Levels are determined at the production stage in line with user demand.

Specifications

Spec	Unit	Value
Input Voltage	V	20 - 30 VDC
Switching Capacity	A	up to 400
Number of output chanels	#	up to 25
Total power	kW	12
Measurement accuracy	%	1 (at max value of channel)
Current limit sense and response time	µS	~10
Output connectors	-	MIL-DTL-5015
Input connector	-	9 +9 Pole Terminal Block
Aux power input	V	85-265VAC
Protection contactor interrupt current	A	500
LAN	Mbit	10/100
Serial communication	-	USB 2.0
Cooling	-	Convection
Dimensions	mm	482(W) x 133(H) x 600(D)
